Bowen 3.5 - Power Swivel Components & Parts
LKC Equipment supplies Bowen 3.5 power swivel components and parts used throughout drilling, workover, and well servicing operations. The Bowen 3.5 is a reliable hydraulic power swivel designed to provide efficient torque transmission, fluid circulation, and dependable performance in demanding oilfield environments.
Our inventory includes a wide range of components used for equipment maintenance, servicing, and rebuild projects. From floating washpipes and hydraulic motors to bearings, gears, stems, and sealing systems, we supply the parts required to help maintain Bowen 3.5 power swivel performance in the field.

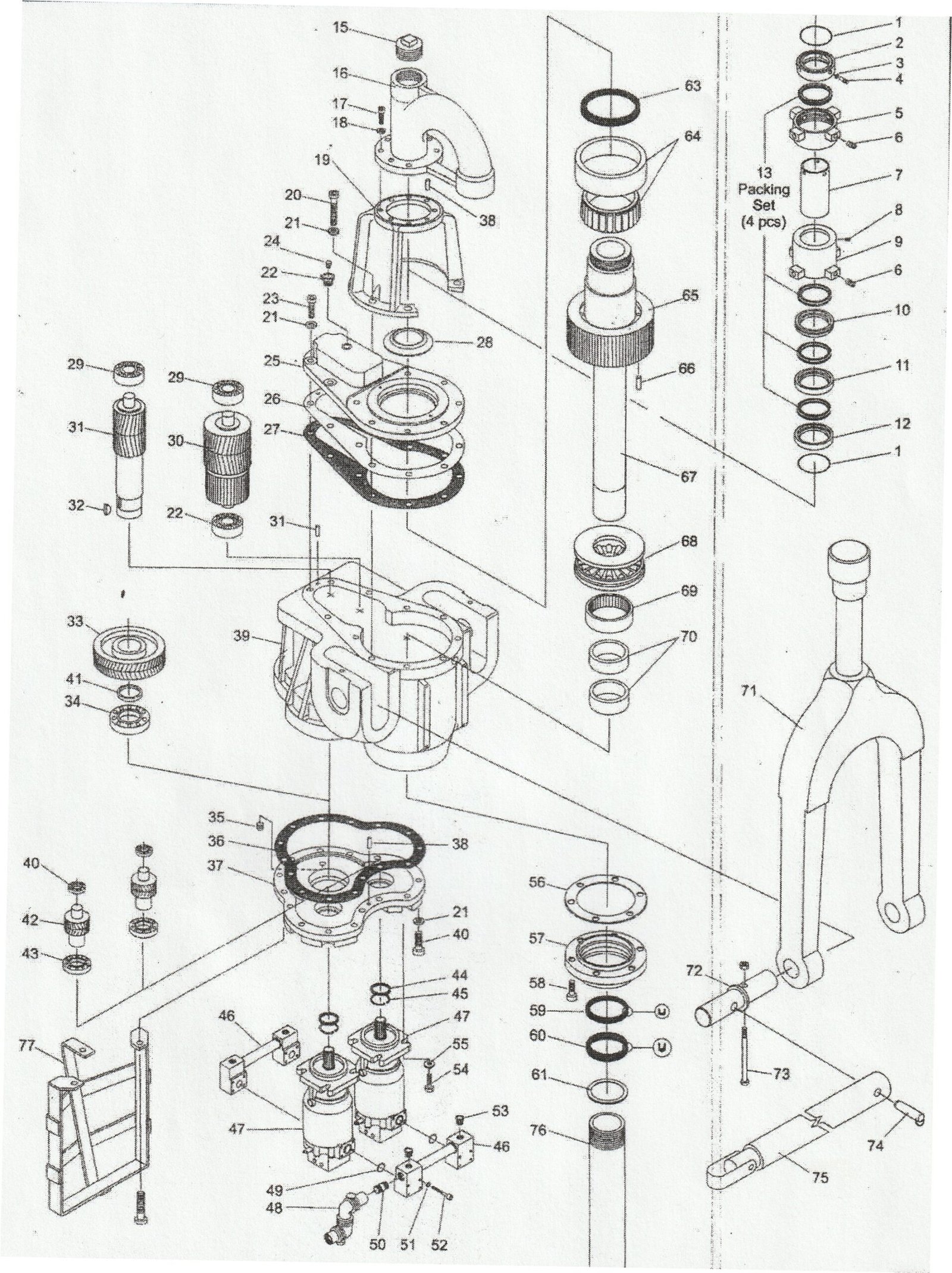

| ITEM | PN# | QTY. | DESCRIPTION |
| 1 | 568-243 | 2 | Packing Nut O-Ring |
| 2 | 83787 | 1 | Upper Packing Nut Ring |
| 3 | 3568-010 | 3 | O-Ring for Set Screws |
| 4 | 35099 | 3 | Washpipe locking pin |
| 5 | 83788 | 1 | Upper Packing Nut |
| 6 | 35102 | 8 | Nylon Tip Set Screws |
| 7 | 35791 | 1 | Floating Washpipe |
| 8 | 27636 | 1 | Packing Nut Grease Fitting |
| 9 | 83789 | 1 | Lower Packing Nut |
| 10 | 35357 | 1 | Lantern-Spacer Ring Floater |
| 11 | 35358 | 1 | Spacer Ring Floater |
| 12 | 35790 | 1 | Bottom Ring Floater |
| 13 | 35355 | 1 set | Packing |
| 15 | 35283 | 1 | Gooseneck Plug |
| 16 | 83785 | 1 | Gooseneck |
| 17 | 23002 | 7 | 1/2″ – 13 X 2 Cap Screw |
| 18 | 31827 | 7 | 1/2″ Lock Washer |
| 19 | 83786 | 1 | Bonnet |
| 20 | 23045 | 6 | 3/4″ – 10 X 3 1/4 Cap Screw |
| 21 | 35190 | 32 | 3/4″ Lock Washer |
| 22 | 25389 | 1 | Upper Oil Filler Plug |
| 23 | 23039 | 5 | 3/4″-10 X 1 3/4 Cap Screw |
| 24 | 22177 | 1 | Relief Fitting |
| 25 | 59300 | 1 | Top Plate |
| 26 | 27287 | 1 | Shim Set |
| 27 | 27275 | 1 | Upper Gear Cover Gasket |
| 28 | 44165 | 1 | Stem Seal Protector |
| 29 | 59281 | 2 | Roller Bearing |
| 30 | 59592 | 1 | Cluster Gear Third Stage Shaft & Gear |
| 31 | 59593 | 1 | Long Gear Third Stage Shaft & Pinion |
| 32 | 59347 | 1 | Second Stage Shaft Key |
| 33 | 59346 | 1 | Lower SLIder First Reduction Gear |
| 34 | 59530 | 1 | Lower Plate Bearing |
| 35 | 20627 | 1 | Magnetic Drain Plug |
| 36 | 27276 | 1 | Lower Gear Cover Gasket |
| 37 | 59531 | 1 | Lower Plate |
| 38 | 35289 | – | Dowel Pin |
| 39 | 1 | Body | |
| 40 | 59280 | 2 | Upper Motor Drive Gear Bearings |
| 41 | 59795 | 2 | First Red Gear Spacer |
| 42 | 59294 | 2 | Motor Drive Gear First Reduction Pinion |
| ITEM | PN# | QTY. | DESCRIPTION |
| 43 | 59708 | 2 | Lower Motor Drive Gear Bearings |
| 44 | 59781 | 2 | Motor Drive Gear Oil Seal |
| 45 | 20001 | 2 | Motor Drive Gear Snap-Rings |
| 46 | 35007 | 2 | Motor Mainfolds |
| 47 | 35548 | 2 | Motor |
| 48 | 65439 | 1 | 1 1/4 Style 10 Swivel Joint |
| 49 | – | 4 | Manifold O-Ring |
| 50 | – | 4 | 1 1/4″ Connector |
| 51 | 35008 | 16 | 3/8 Lock Washers |
| 52 | 25894 | 16 | 3/8″-16 X 2 3/4 Cap Screws |
| 53 | – | – | 3/4″ O-Ring Plug |
| 54 | 23881 | – | 1/2″ – 13 X 1 1/2 Hex Bolt |
| 55 | 46719 | – | 1/2″ Motor Special Flat washer |
| 56 | – | 1 | Seal Plate Gasket |
| 57 | – | 1 | Seal Plate |
| 58 | 23038 | – | 3/4″ – 10 X 11 1 1/2 Cap Screw |
| 59 | 27286 | 1 | Lower Stem Inner Oil Seal |
| 60 | 27416 | 1 | Lower Stem Outer Oil Seal |
| 61 | 30362 | 1 | Lower Stem Spiralox Oil Seal |
| 63 | 27285 | 1 | Upper Stem Oil Seal |
| 64 | 27277 | 1 | Upper Stem Bearing & Race |
| 65 | 27208 | 1 | Main Drive Gear |
| 66 | 27238 | – | Ring Gear Groove Pin |
| 67 | 44164 | 1 | Stem |
| 68 | 27279 | 1 | Load Bearing |
| 69 | 27426 | 1 | Lower Stem Bearing |
| 70 | 27278 | 2 | Lower Stem Race |
| 71 | 46690 | 1 | Elevator Bail |
| 72 | 35482 | 2 | Bail Pin |
| 73 | 35003 | 2 | Bail Pin Bolt & Nut |
| 74 | 35384 | 1 | Torque Rein |
| 75 | 51413 | 1 | Torque Rein Pull Pin |
| 76 | 35197 | 1 | Saver Sub |
Bowen 3.5 Power Swivel Components
The Bowen 3.5 power swivel incorporates multiple hydraulic, mechanical, and structural assemblies designed to support drilling and well servicing applications. We supply a variety of components commonly used throughout the unit.
Available components include:
- Goosenecks
- Bonnets
- Floating Washpipes
- Hydraulic Motors
- Top Plates
- Lower Plates
- Elevator Bails
- Torque Reins
- Saver Subs
- Bodies
These components help maintain reliable operation while supporting ongoing equipment maintenance and servicing programs.

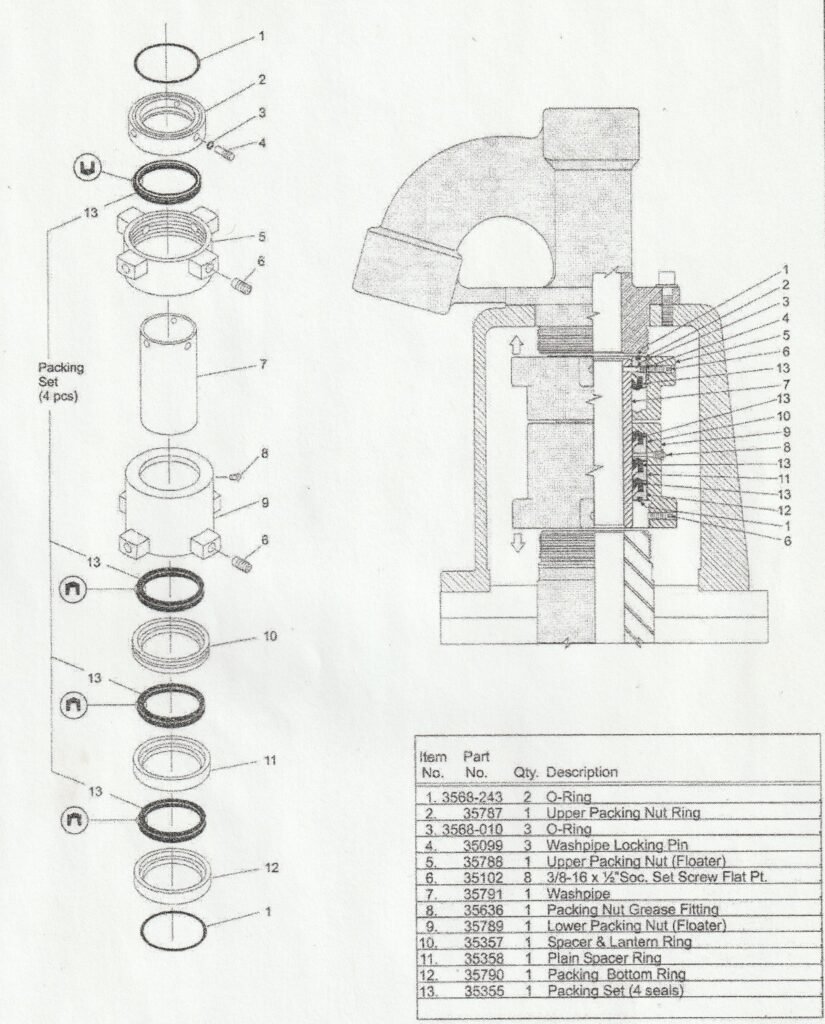

Floating Washpipe & Packing Assemblies
The floating washpipe system is essential for maintaining drilling fluid circulation while minimizing leakage during operation. Proper maintenance of packing assemblies and sealing components helps improve equipment reliability and operational efficiency.
Available components include:
- Floating Washpipes
- Packing Sets
- Upper Packing Nuts
- Lower Packing Nuts
- Packing Nut Rings
- Lantern Spacer Rings
- Spacer Rings
- Bottom Rings
- Packing Nut Grease Fittings
- O-Rings
These components help maintain sealing integrity while supporting smooth fluid circulation throughout the power swivel assembly.
Bearings, Gears & Drive Components
The Bowen 3.5 utilizes a heavy-duty gear and bearing system designed to withstand demanding drilling conditions while delivering efficient torque transfer.
Available drive components include:
- Main Drive Gears
- Reduction Gears
- Pinions
- Roller Bearings
- Load Bearings
- Stem Bearings & Races
- Gear Shafts
- Gear Keys
- Gear Spacers
These components help support rotational performance, load handling, and long-term equipment reliability.
Hydraulic Motor Components
Hydraulic motors provide the rotational force required for operation of the Bowen 3.5 power swivel. Maintaining these assemblies helps ensure dependable performance and reduced downtime during drilling and servicing activities.
Available hydraulic components include:
- Hydraulic Motors
- Motor Manifolds
- Swivel Joints
- Manifold O-Rings
- Connectors
- Motor Drive Gear Bearings
- First Reduction Pinions
- Related Hardware
These components support efficient hydraulic operation across a wide range of oilfield applications.
Stems, Saver Subs & Structural Components
The Bowen 3.5 incorporates several structural and load-bearing components designed to withstand the operational demands of drilling and well servicing environments.
Available components include:
- Stems
- Saver Subs
- Elevator Bails
- Bail Pins
- Torque Reins
- Torque Rein Pull Pins
- Stem Seal Protectors
- Dowel Pins
- Structural Body Components
These components contribute to equipment durability, safety, and reliable field performance.
Seals, Wear Components & Maintenance Parts
Routine maintenance is critical for maximizing equipment service life and minimizing downtime. We supply a variety of wear components commonly used during servicing and maintenance activities.
Available maintenance components include:
- Oil Seals
- Stem Oil Seals
- Spiralox Oil Seals
- O-Rings
- Gaskets
- Seal Plate Components
- Relief Fittings
- Magnetic Drain Plugs
- Fasteners and Hardware
These components help support preventive maintenance programs and dependable equipment operation.
Applications
Bowen 3.5 power swivel components are commonly used in:
- Drilling operations
- Workover projects
- Well servicing operations
- Rig maintenance programs
- Equipment refurbishment
- Oilfield service applications
- Production support activities
These components help operators maintain efficient equipment performance while minimizing maintenance-related downtime.
Why Choose LKC Equipment
LKC Equipment supplies quality oilfield equipment components designed for demanding drilling and well servicing environments. Our inventory supports operators, drilling contractors, and service companies seeking dependable components for maintenance and repair projects.
Benefits include:
- Bowen 3.5 power swivel components
- Hydraulic motor assemblies
- Floating washpipe systems
- Bearings and gear components
- Packing and sealing assemblies
- Structural replacement components
- Industry expertise and support
Frequently Asked Questions
The Bowen 3.5 is a hydraulic power swivel used in drilling, workover, and well servicing operations to provide rotational force and drilling fluid circulation.
Available components include hydraulic motors, floating washpipes, bearings, gears, stems, packing systems, saver subs, seals, and structural assemblies.
A floating washpipe is a component that allows drilling fluid to circulate through the power swivel while maintaining sealing integrity during operation.
Packing assemblies help reduce fluid leakage, maintain pressure integrity, and support reliable operation of the washpipe system.
Common maintenance items include packing sets, oil seals, bearings, washpipes, gears, drive components, and hydraulic system components depending on operating conditions.
Yes. LKC Equipment supplies hydraulic motors, motor manifolds, bearings, reduction gears, drive components, and related hydraulic system parts used in Bowen 3.5 power swivel assemblies.
