GUIBERSON T-60 & T-40 AIR SLIP/SPIDER
Category: HANDLING TOOLS - PARTS; DIES & INSERTS

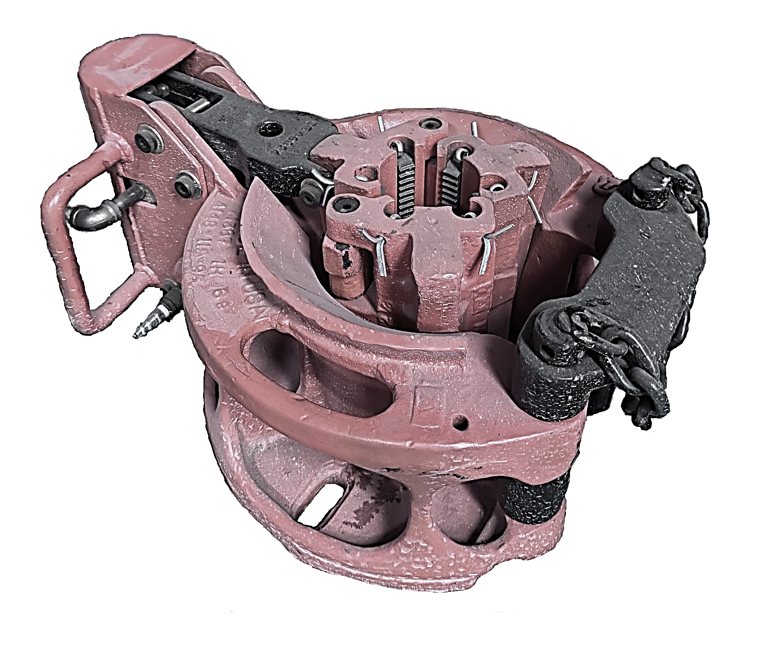

Guiberson T-60 & T-40 Air Slip Spider
LKC Equipment supplies Guiberson T-60 and T-40 air slip spiders for drilling, completion, workover, and well servicing operations throughout the oil and gas industry. These oilfield slip spiders are designed to provide secure tubular gripping and dependable handling performance while supporting efficient rig floor operations.
Our inventory includes slip bodies, inserts, air actuating assemblies, air cylinder components, repair kits, and replacement parts for both T-60 and T-40 models. These field-proven systems help operators maintain reliable tubular handling performance in demanding drilling environments.
Available Guiberson T-60 & T-40 Air Slip Spider
T-40
| SLIP BODY PN# | SLIP SIZE | INSERT PN# | DESCRIPTION |
| 62471 | 2 7/8″ | 62479 | 1.050″ INSERTS |
| 62480 | 1.315″ INSERTS | ||
| 62481 | 1.660″ INSERTS | ||
| 62482 | 1.90″ INSERTS | ||
| 62483 | 2″ INSERTS | ||
| 62484 | 2 1/16″ INSERTS | ||
| 42597 | 2 3/8″ INSERTS | ||
| 42598 | 2 7/8″ INSERTS | ||
| 62472 | 3 1/2″ | 42599 | 3 1/2″ INSERTS |
| 58039 | 4 1/2″ | 4 1/2″ INTEGRAL |

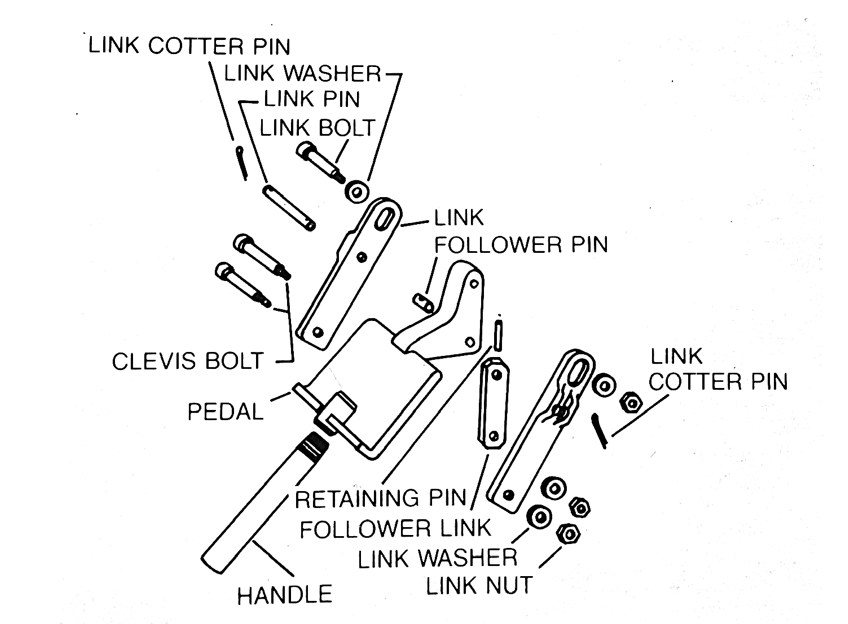

MANUAL HANDLE ASSEMBLY
| PN# | QTY REQ’D | DESCRIPTION |
| 26073 | 2 | CLEVIS BOLT |
| 28410 | 2 | COTTER PIN |
| 28254 | 1 | FOLLOWER LINK |
| 21786 | 1 | FOLLOWER PIN |
| 28255 | 1 | HANDLE |
| 28253 | 2 | LINK |
| 24212 | 1 | LINK BOLT |
| 24647 | 3 | LOCK NUT |
| 24235 | 2 | LINK WASHER |
| 24223 | 2 | PIVOT WASHER |
| 21784 | 1 | LINK PIN |
| 28240 | 1 | PEDAL |
| 28445 | 1 | RETAINING PIN |
| 56810 | 1 | REPAIR KIT |

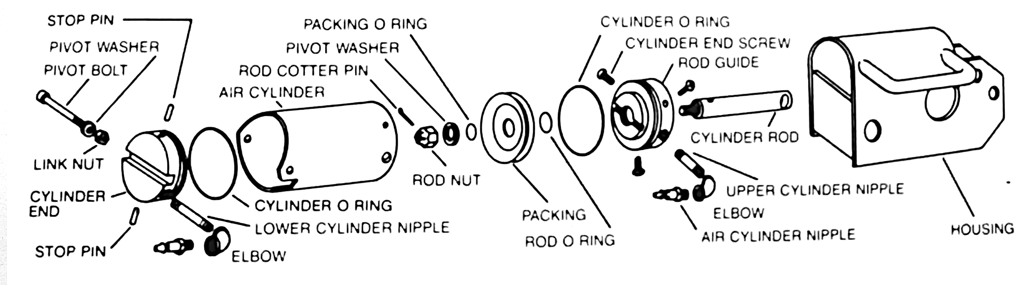

MANUAL HANDLE ASSEMBLY
| PN# | QTY REQ’D | DESCRIPTION |
| 54569 | 1 | AIR CYLINDER- COMPLETE |
| 50644 | 1 | CYLINDER BARREL |
| 18415 | 3* | CYLINDER END SCREW |
| 18496 | 1* | CYLINDER O-RING |
| 26894 | 1 | CYLINDER ROD |
| 27860 | 1* | PACKING (PISTON) |
| 27861 | 1* | PACKING O-RING |
| 27859 | 1* | ROD COTTER PIN |
| 50648 | 1 | ROD GUIDE |
| 27858 | 1* | ROD NUT |
| 19337 | 2* | ROD O-RING |
| 24223 | 1* | PIVOT WASHER |
| 26353 | 1 | PIVOT BOLT |
| 51087 | 1 | CONTROL LINK |
| 27864 | 2 | ELBOW |
| 37811 | 1 | HOUSING |
| 26359 | 2 | HOUSING BOLT |
| 24647 | 4 | LOCK NUT |
| 27862 | 1 | LONG NIPPLE |
| 27863 | 1 | SHORT NIPPLE |
| 24212 | 1 | LINK BOLT |
| 66172 | 2 | AIR CYLINDER NIPPLE |
| 24223 | 4 | PIVOT WASHER |
| 24235 | 2 | LINK WASHER |
| 52814 | 1 | PISTON ROD PIN |
| 80500 | 1 | PLUG, ORIFICE |
| 84052 | REPAIR KIT FOR AIR ACTUATING ASSEMBLY | |
| 54816 | * = INCLUDED | REPAIR KIT FOR AIR CYLINDER (54569) |
Guiberson T-40 Air Slip Spider
The Guiberson T-40 air slip spider is designed to provide dependable tubular handling and secure gripping performance during drilling and workover operations.
Available slip body sizes include:
- 2 7/8″
- 3 1/2″
- 4 1/2″ Integral
Available insert sizes include:
- 1.050″
- 1.315″
- 1.660″
- 1.90″
- 2″
- 2 1/16″
- 2 3/8″
- 2 7/8″
- 3 1/2″
These insert options allow operators to configure the slip spider for a variety of tubing and tubular handling requirements.
T-60
| SLIP BODY PN# | SLIP SIZE | INSERT PN# | DESCRIPTION |
| 62461 | 2 7/8″ | 62473 | 1.050″ INSERTS |
| 62474 | 1.315″ INSERTS | ||
| 62475 | 1.660″ INSERTS | ||
| 62476 | 1.90″ INSERTS | ||
| 62477 | 2″ INSERTS | ||
| 62478 | 2 1/16″ INSERTS | ||
| 42586 | 2 3/8″ INSERTS | ||
| 42587 | 2 7/8″ INSERTS | ||
| 62462 | 3 1/2″ | 42588 | 3 1/2″ INSERTS |
| 49933 | 4″ | 4″ INTEGRAL | |
| 34989 | 4 1/2″ | 4 1/2″ INTEGRAL |

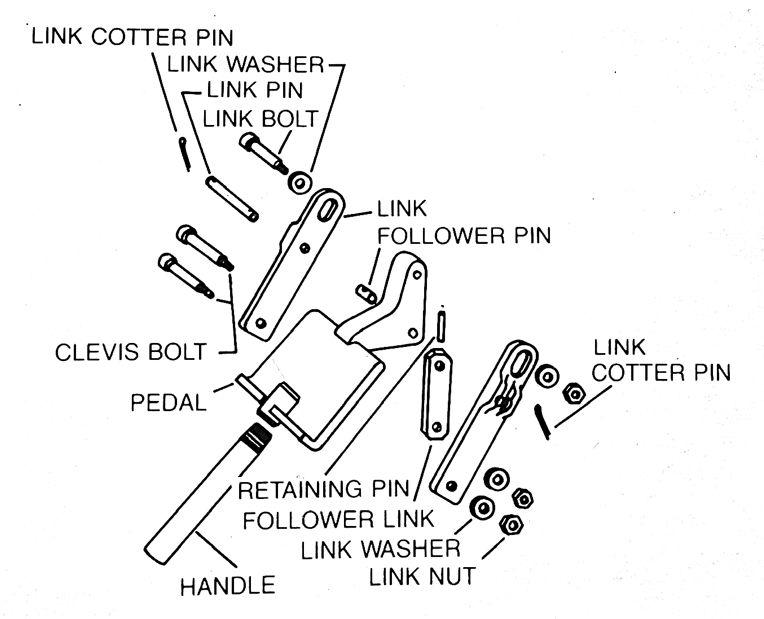

MANUAL HANDLE ASSEMBLY
| PN# | QTY REQ’D | DESCRIPTION |
| 26073 | 2 | CLEVIS BOLT |
| 28410 | 2 | COTTER PIN |
| 21787 | 1 | FOLLOWER LINK |
| 21786 | 1 | FOLLOWER PIN |
| 28255 | 1 | HANDLE |
| 21792 | 2 | LINK |
| 24212 | 1 | LINK BOLT |
| 24647 | 3 | LOCK NUT |
| 24235 | 2 | LINK WASHER |
| 24223 | 2 | PIVOT WASHER |
| 21784 | 1 | LINK PIN |
| 29440 | 1 | PEDAL |
| 28445 | 1 | RETAINING PIN |
| 56811 | 1 | REPAIR KIT |

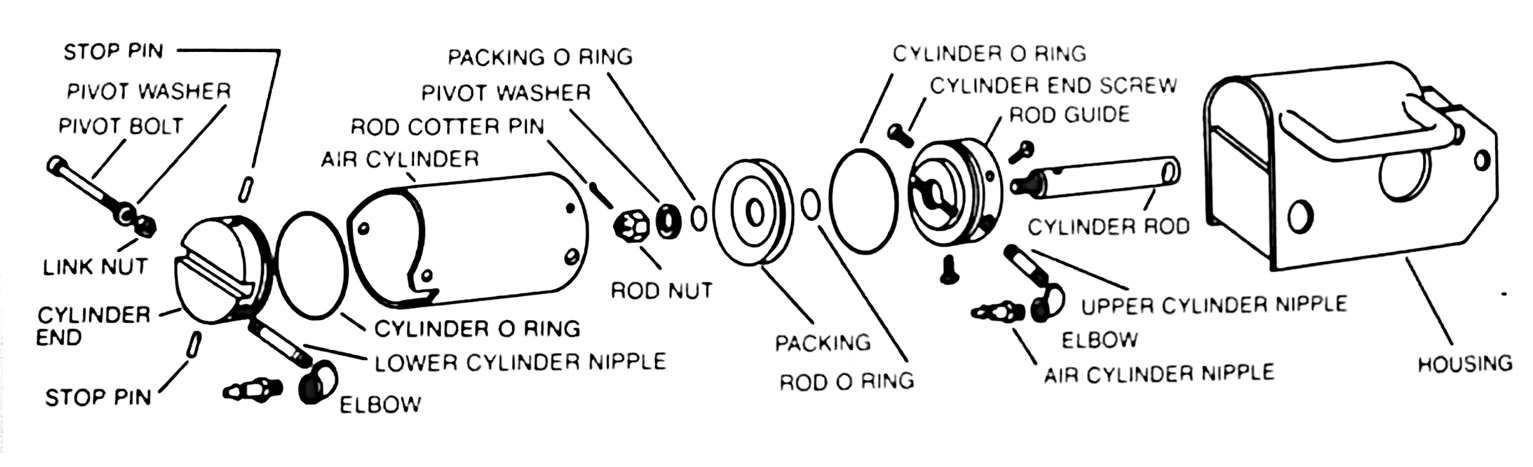

MANUAL HANDLE ASSEMBLY
| PN# | QTY REQ’D | DESCRIPTION |
| 54569 | 1 | AIR CYLINDER- COMPLETE |
| 50644 | 1 | CYLINDER BARREL |
| 18415 | 3* | CYLINDER END SCREW |
| 18496 | 1* | CYLINDER O-RING |
| 26894 | 1 | CYLINDER ROD |
| 27860 | 1* | PACKING (PISTON) |
| 27861 | 1* | PACKING O-RING |
| 27859 | 1* | ROD COTTER PIN |
| 50648 | 1 | ROD GUIDE |
| 27858 | 1* | ROD NUT |
| 19337 | 2* | ROD O-RING |
| 24223 | 1* | PIVOT WASHER |
| 26353 | 1 | PIVOT BOLT |
| 46024 | 1 | CONTROL LINK |
| 27864 | 2 | ELBOW |
| 43733 | 1 | HOUSING |
| 26359 | 2 | HOUSING BOLT |
| 21784 | 1 | LINK PIN |
| 28445 | 2 | LINK ROLL PIN |
| 24647 | 4 | LOCK NUT |
| 27862 | 1 | LONG NIPPLE |
| 27863 | 1 | SHORT NIPPLE |
| 24212 | 1 | LINK BOLT |
| 66172 | 2 | AIR CYLINDER NIPPLE |
| 24223 | 4 | PIVOT WASHER |
| 24235 | 2 | LINK WASHER |
| 52814 | 1 | PISTON ROD PIN |
| 80500 | 1 | PLUG, ORIFICE |
| 84052 | REPAIR KIT FOR AIR ACTUATING ASSEMBLY | |
| 54816 | * = INCLUDED | REPAIR KIT FOR AIR CYLINDER (54569) |
Guiberson T-60 Air Slip Spider
The Guiberson T-60 air slip spider is designed for heavy-duty oilfield applications requiring reliable gripping performance and efficient operation.
Available slip body sizes include:
- 2 7/8″
- 3 1/2″
- 4″
- 4 1/2″
Available insert sizes include:
- 1.050″
- 1.315″
- 1.660″
- 1.90″
- 2″
- 2 1/16″
- 2 3/8″
- 2 7/8″
- 3 1/2″
Integral slip body configurations are also available for selected sizes.
Slip Spider Inserts & Slip Bodies
Proper insert selection is essential for maintaining secure tubular engagement and safe handling operations. We supply a variety of slip bodies and inserts for both T-60 and T-40 air slip spiders.
Available components include:
- Slip Bodies
- Slip Inserts
- Integral Slip Assemblies
- Tubing Inserts
- Replacement Gripping Components
These components help maintain gripping performance and operational reliability throughout the service life of the equipment.
Air Cylinder Assemblies
The air cylinder assembly is a key component of the Guiberson air slip spider system. These assemblies help automate slip operation and improve rig floor efficiency.
Available air cylinder components include:
- Complete Air Cylinders
- Cylinder Barrels
- Cylinder Rods
- Rod Guides
- Rod Nuts
- Cylinder O-Rings
- Packing Assemblies
- Air Cylinder Nipples
- Elbows
- Housing Components
Repair kits are also available for servicing air cylinder assemblies.

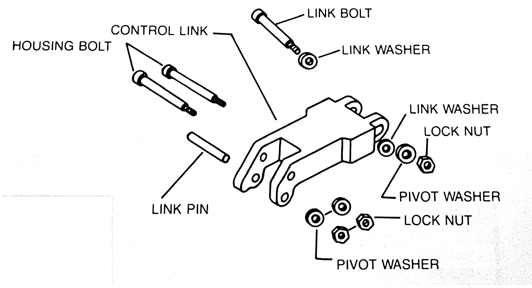

Air Actuating Assembly Components
The air actuating assembly controls the operation of the slip spider and supports reliable equipment performance during drilling operations.
Available components include:
- Control Links
- Pivot Bolts
- Pivot Washers
- Housing Assemblies
- Lock Nuts
- Long Nipples
- Short Nipples
- Link Bolts
- Piston Rod Pins
- Orifice Plugs
Air actuating assembly repair kits are available to support ongoing maintenance programs.
Manual Handle Assembly Components
Manual handle assemblies provide an alternative operating mechanism and are available for both T-40 and T-60 configurations.
Available components include:
- Handles
- Follower Links
- Follower Pins
- Links
- Link Bolts
- Link Pins
- Clevis Bolts
- Cotter Pins
- Pedals
- Retaining Pins
Replacement repair kits are available for both T-40 and T-60 manual handle assemblies.
Slip Spider Repair Kits & Replacement Parts
Routine maintenance helps maximize equipment life and maintain safe operation. We supply replacement parts and repair kits for Guiberson air slip spiders.
Available replacement components include:
- Repair Kits
- Cylinder Components
- O-Rings
- Packing Assemblies
- Control Links
- Housing Components
- Slip Inserts
- Slip Bodies
- Handle Components
- Air Actuating Parts
These components support maintenance programs and help minimize operational downtime.
Applications
Guiberson T-60 and T-40 air slip spiders are commonly used in:
- Drilling operations
- Workover projects
- Tubing handling
- Completion activities
- Rig floor operations
- Oilfield servicing
- Well intervention projects
These tools provide dependable tubular handling while improving operational efficiency and safety.
Why Choose LKC Equipment
LKC Equipment supplies quality oilfield handling equipment and replacement parts designed for demanding drilling environments.
Benefits include:
- Guiberson T-60 air slip spiders
- Guiberson T-40 air slip spiders
- Slip bodies and inserts
- Air cylinder assemblies
- Air actuating components
- Repair kits available
- Industry-proven equipment
- Fast enquiry support
Frequently Asked Questions
A Guiberson air slip spider is an oilfield handling tool used to grip and support tubing or tubulars during drilling, workover, and well servicing operations.
Both models are designed for tubular handling applications but are available with different slip body configurations, insert options, and component assemblies.
Yes. Multiple insert sizes are available for both T-40 and T-60 slip spider configurations.
Yes. Complete air cylinder assemblies, cylinder rods, barrels, seals, packing components, and repair kits are available.
Yes. Repair kits are available for manual handle assemblies, air cylinder assemblies, and air actuating assemblies.
Air slip spiders are commonly used in oil and gas drilling, completion, workover, and well servicing operations.
