O'BANNON ROD FISHING TOOLS
Category: ROD/ WIRELINE – SWAB CUPS; OIL SAVER; ROPE SOCKETS; JARS

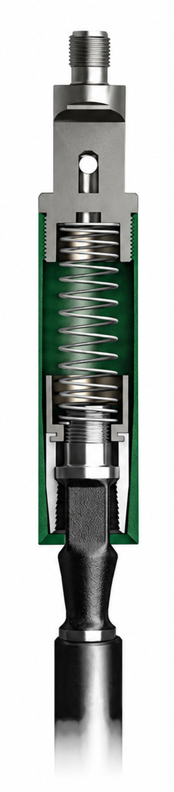

O'Bannon Rod Fishing Tools for Sucker Rod Fishing & Well Servicing
LKC Equipment supplies O’Bannon rod fishing tools for sucker rod fishing, broken rod retrieval, and well servicing applications. Our available O’Bannon fishing tools include Baby Red Sockets, Big Boy / Polished Rod Sockets, and Oversize Overshot Sockets in multiple configurations and slip sizes.
These rod fishing tools are designed for fishing and retrieving rod components and other downhole equipment encountered during well servicing operations. New and refurbished tools are available depending on inventory.

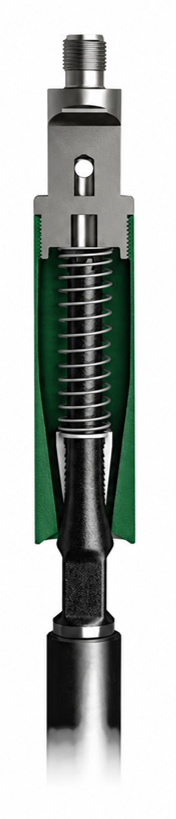

O'Bannon Baby Red Rod Fishing Tools
O’Bannon Baby Red Sockets are rod fishing tools designed for gripping and retrieving rod components during well servicing operations.
The Baby Red Socket uses spring-loaded slips that are engaged by the bowl to grip the break. The client-supplied product information identifies applications including rod body, rod splice, and valve rod.
BABY RED SOCKET
ROD BODY, ROD SPLICE, or VALVE ROD
NEW or REFURBISHED AVAILIBLE
THE BREAK IS GRIPPED BY SPRING LOADED SLIPS THAT ARE ENGAGED BY THE BOWL.
(2″) 2 3/8″ BABY RED | |
PN# | DESCRIPTION |
BR11-20 | COMPLETE BABY RED SOCKET |
BR4-20 | TOP |
BR3-20 | BOWL |
BS7-20 | SPRING |
BS14-20 | SPRING RING |
BR2-20 | 1/2″ PIPE THREAD PIN SLIPS |
BR2-20 | 15/16″ PIN SLIPS |
BS15-20 | 7/16″- 5/8″ SLIPS |
BS3-20 | 5/8″ – 3/4″ SLIPS |
BS12-20 | 3/4″ – 7/8″ SLIPS |
(2 1/2″) 2 7/8″ BABY RED | |
PN# | DESCRIPTION |
BR11-25 | COMPLETE BABY RED SOCKET |
BR4-25 | TOP |
BR3-25 | BOWL |
BS7-30 | SPRING |
BS14-25 | SPRING RING |
BS15-25 | 7/16″- 5/8″ SLIPS |
BS3-25 | 5/8″ – 3/4″ SLIPS |
BS12-25 | 3/4″ – 7/8″ SLIPS |
BS19-25 | 7/8″ – 1″ SLIPS |
Baby Red Applications
The Baby Red Socket is identified for use with:
- Rod body
- Rod splice
- Valve rod
The break is gripped by spring-loaded slips that are engaged by the bowl.
New or refurbished available.
O'Bannon Big Boy / Polished Rod Sockets
O’Bannon Big Boy / Polished Rod Sockets provide another rod fishing configuration for well servicing and fishing applications.
The Big Boy Socket uses spring-loaded slips that are engaged by the bowl to grip the break. The supplied product information identifies applications involving Class T couplings, pin shoulders, pin threads, polished rods, and valve rod guides.
BIG BOY SOCKET
CLASS T COUPLING, PIN SHOULDER, PIN THREAD, POLISHED ROD, or VALVE ROD GUIDE
NEW or REFURBISHED AVAILIBLE
THE BREAK IS GRIPPED BY SPRING LOADED SLIPS THAT ARE ENGAGED BY THE BOWL.
(2″) 2 3/8″ BIG BOY / POLISHED ROD SCKT | |
PN# | DESCRIPTION |
BBS11-20 | COMPLETE SOCKET |
BBS6-20 | TOP |
BBS5-20 | BOWL |
BBS4-20 | SLIP STOP |
BS7-25 | SPRING |
BS8-20 | 7/8″ & 1″ PIN SLIPS |
BS16-20 | 1 1/16″ PIN SLIPS |
BS9-20 | 1 1/8″ – 1 3/8″ SLIPS |
BS1-20 | 1 3/8″ – 1 1/2″ SLIPS |
(2 1/2″) 2 7/8″ BIG BOY / POLISHED ROD SCKT | |
PN# | DESCRIPTION |
BBS11-25 | COMPLETE SOCKET |
BBS6-25 | TOP |
BBS5-25 | BOWL |
BBS4-25 | SLIP STOP |
BS2-20 | SPRING |
BS8-25 | 7/8″ & 1″ PIN SLIPS |
BS16-25 | 1 1/16″ PIN SLIPS |
BS20-25 | 1 3/16″ PIN SLIPS |
BS9-25 | 1 1/8″ – 1 3/8″ SLIPS |
BS1-25 | 1 3/8″ – 1 5/8″ SLIPS |
Big Boy Socket Applications
The Big Boy / Polished Rod Socket is identified for use with:
- Class T coupling
- Pin shoulder
- Pin thread
- Polished rod
- Valve rod guide
New or refurbished available.

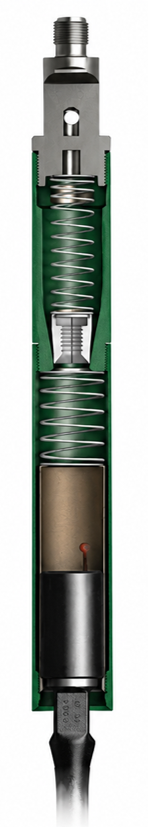

O'Bannon Oversize Overshot Sockets
O’Bannon Oversize Overshot Sockets are designed for rod fishing applications involving different coupling and rod configurations.
The supplied product information identifies a two-bowl configuration in which the lower bowl uses a coupling slip to hold the rod string with a mechanical grip, while the upper bowl grips the break with spring-loaded slips engaged by the bowl.
OVERSHOT SOCKET
SPRAYMETAL COUPLING, CLASS T COUPLING, PIN SHOLDER, ROD BODY, VALVE ROD, or VALVE ROD GUIDE
NEW or REFURBISHED AVAILIBLE
THE LOWER BOWL USES A COUPLING SLIP TO HOLD THE ROD STRING WITH A MECHANICAL GRIP.
THE UPPER BOWL WILL GRIP THE BREAK WITH A SPRING LOADED SLIPS THAT ARE ENGAGED BY THE BOWL.
(2″) 2 3/8″ OVERSIZE OVERSHOT | |
PN# | DESCRIPTION |
OS21-20 | COMP. COMBINATION SOCKET |
OS11-20 | COMP. COUPLING SOCKET |
OS3-20 | TOP |
OS5-20 | UPPER BOWL |
BS7-20 | UPPER SPRING |
BS15-20 | 7/16″ – 5/8″ SLIPS |
BS3-20 | 5/8″ – 3/4″ SLIPS |
BS12-20 | 3/4″ – 7/8″ SLIPS |
OS2-20 | LOWER BOWL |
BS2-20 | LOWER SPRING |
BS14-20 | SPRING RING |
OS4T-20 | 1 1/4″ O.D. COUPLING |
OS4A-20 | 1 3/8″ O.D. COUPLING |
OS4B-20 | 1 7/16″ O.D. COUPLING |
OS4C-20 | 1 1/2″ O.D. COUPLING |
OS4D-20 | 1 9/16″ O.D. COUPLING |
OS4E-20 | 1 5/8″ O.D. COUPLING |
(2 1/2″) 2 7/8″ OVERSIZE OVERSHOT | |
PN# | DESCRIPTION |
OS21-25 | COMP. COMBINATION SOCKET |
OS11-25 | COMP. COUPLING SOCKET |
OS3-25 | TOP |
OS5-25 | UPPER BOWL |
BS7-30 | UPPER SPRING |
BS15-25 | 7/16″ – 5/8″ SLIPS |
BS3-25 | 5/8″ – 3/4″ SLIPS |
BS12-25 | 3/4″ – 7/8″ SLIPS |
BS19-25 | 7/8″ – 1″ SLIPS |
OS2-25 | LOWER BOWL |
BS2-25 | LOWER SPRING |
BS14-25 | SPRING RING |
OS4C-25 | 1 1/2″ O.D. COUPLING |
OS4D-25 | 1 9/16″ O.D. COUPLING |
OS4E-25 | 1 5/8″ O.D. COUPLING |
OS4F-25 | 1 11/16″ O.D. COUPLING |
OS4G-25 | 1 3/4″ O.D. COUPLING |
OS4H-25 | 1 13/16″ O.D. COUPLING |
OS4J-25 | 1 7/8″ O.D. COUPLIG |
OS4K-25 | 1 15/16″ O.D. COUPLING |
OS4L-25 | 2″ O.D. COUPLING |
Overshot Socket Applications
The supplied product information identifies the Oversize Overshot Socket for:
- Spraymetal coupling
- Class T coupling
- Pin shoulder
- Rod body
- Valve rod
- Valve rod guide
The lower bowl uses a coupling slip to hold the rod string with a mechanical grip. The upper bowl grips the break with spring-loaded slips engaged by the bowl.
New or refurbished available.
Sucker Rod Fishing Tools for Oilfield Well Servicing
Rod fishing tools are used during well servicing operations when rod components or other downhole parts require retrieval.
LKC Equipment supplies O’Bannon fishing-tool configurations for different rod and coupling applications, including Baby Red Sockets, Big Boy / Polished Rod Sockets, and Oversize Overshot Sockets.
Available configurations include different slip ranges and coupling outside diameters to support varying fishing requirements.
Whether you are sourcing a Baby Red, Big Boy, Polished Rod Socket, or Oversize Overshot, provide the rod, coupling, or fish information when requesting a quotation so the appropriate configuration can be identified.
O'Bannon Rod Fishing Tool Applications
O’Bannon rod fishing tools can be used for a range of rod fishing and well servicing requirements, including:
- Sucker rod fishing
- Broken rod retrieval
- Rod body fishing
- Rod splice fishing
- Valve rod fishing
- Polished rod fishing
- Coupling fishing
- Rod string retrieval
- Well servicing operations
- Oilfield fishing applications
The specific tool and slip configuration should be selected according to the item being fished and the applicable dimensions.
O'Bannon Rod Fishing Tool Sizes & Slip Configurations
LKC Equipment offers O’Bannon fishing-tool configurations covering multiple socket sizes and slip ranges.
Available product information includes:
- 2 3/8″ Baby Red
- 2 7/8″ Baby Red
- 2 3/8″ Big Boy / Polished Rod Socket
- 2 7/8″ Big Boy / Polished Rod Socket
- 2 3/8″ Oversize Overshot
- 2 7/8″ Oversize Overshot
- 7/16″ – 5/8″ slips
- 5/8″ – 3/4″ slips
- 3/4″ – 7/8″ slips
- 7/8″ – 1″ slips
- Additional pin-slip and coupling configurations
Contact LKC Equipment with your required rod or coupling size to confirm available inventory and configuration.
New & Refurbished O'Bannon Fishing Tools
LKC Equipment offers O’Bannon rod fishing tools in new or refurbished condition, depending on available inventory.
For procurement teams and well servicing contractors, refurbished equipment can provide another sourcing option when the required fishing tool or configuration is needed for an upcoming job.
Contact LKC Equipment for current availability, condition, configuration, and pricing.
Why Choose LKC Equipment for O'Bannon Rod Fishing Tools?
LKC Equipment supplies oilfield equipment and well servicing tools for demanding production, maintenance, and field-service applications.
When sourcing O’Bannon rod fishing tools from LKC, customers can request information based on:
- Fishing tool type
- Socket size
- Rod size
- Slip configuration
- Coupling size
- Application
- New or refurbished condition
- Current inventory availability
Our team can help identify the appropriate available configuration based on the information provided with your enquiry.
Frequently Asked Questions
O’Bannon rod fishing tools are specialized oilfield fishing tools used for rod fishing and well servicing applications. LKC Equipment offers Baby Red Sockets, Big Boy / Polished Rod Sockets, and Oversize Overshot Sockets.
The supplied product information identifies Baby Red Sockets for applications involving rod bodies, rod splices, and valve rods. The break is gripped by spring-loaded slips engaged by the bowl.
The Big Boy Socket is a rod fishing socket identified in the supplied product information for Class T couplings, pin shoulders, pin threads, polished rods, and valve rod guides.
A polished rod socket is a fishing-tool configuration used for applicable polished-rod fishing requirements. LKC’s supplied O’Bannon product range includes Big Boy / Polished Rod Sockets in 2 3/8″ and 2 7/8″ configurations.
The O’Bannon Oversize Overshot is a rod fishing socket configuration with upper and lower bowl components. The supplied product information identifies coupling slips and spring-loaded slips for gripping the rod string and break.
The supplied range includes 2 3/8″ and 2 7/8″ Baby Red, Big Boy / Polished Rod Socket, and Oversize Overshot configurations, with multiple slip and coupling-size options.
Yes. The supplied product information lists multiple slip ranges and pin-slip configurations depending on the socket and application.
Yes. New or refurbished availability is indicated for the Baby Red, Big Boy Socket, and Overshot Socket products. Actual inventory should be confirmed with LKC Equipment.
The appropriate fishing tool depends on the item being fished, rod or coupling dimensions, socket size, and required slip configuration. Contact LKC Equipment with the available rod, coupling, or fish specifications for assistance with identifying an available configuration.
Yes. LKC Equipment supplies O’Bannon rod fishing tools, including Baby Red Sockets, Big Boy / Polished Rod Sockets, and Oversize Overshot Sockets.
Request O'Bannon Rod Fishing Tools from LKC Equipment
Looking for O’Bannon rod fishing tools for a sucker rod fishing or well servicing application?
LKC Equipment supplies Baby Red Sockets, Big Boy / Polished Rod Sockets, and Oversize Overshot Sockets in multiple configurations, with new and refurbished options available depending on inventory.
Provide the rod size, coupling information, required socket type, slip range, or application details when contacting us so we can help identify the appropriate available equipment.
