SAFETY CLAMPS (TYPE C , TYPE T)
Category: HANDLING TOOLS - PARTS; DIES & INSERTS
Safety Clamps Type C & Type T
LKC Equipment supplies Type C and Type T safety clamps designed for drilling, completion, workover, and well servicing operations throughout the oil and gas industry. These oilfield safety clamps provide a secure method of gripping and supporting tubulars during handling operations, helping improve safety and operational efficiency on the rig floor.
Available in multiple link configurations and pipe size ranges, Type C and Type T safety clamps are suitable for a variety of tubing, casing, drill pipe, and tubular handling applications. Replacement inserts, link assemblies, pivot blocks, handles, lifting clevises, and maintenance components are also available.
Type T Safety Clamps
The Type T Safety Clamp is used in oilfield drilling and well servicing operations to securely hold drill collars, tubing, and flush-joint pipes. It helps prevent tubulars from accidentally slipping or falling into the wellbore, improving safety during handling and maintenance activities.
The clamp features a durable interlocking link design with tapered wedges that provide a firm and even grip around the pipe without causing damage. It is suitable for pipe sizes ranging from 1-1/8″ to 4-1/2″ and is manufactured in accordance with API 7K standards for reliable field performance.

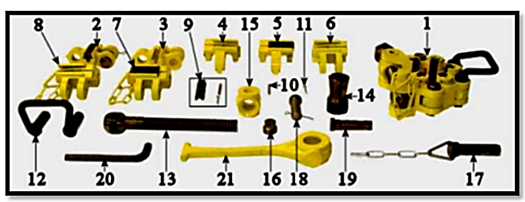

| ITEM | PN# | DESCRIPTION |
| – | 7624-5103 | (4 LINK) 1 1/8″ to 2″ |
| 1 | 7624-5104 | (5 LINK) 2 1/8″ to 3 1/4″ |
| – | 7624-5105 | (6 LINK) 3 1/2″ to 4 1/2″ |
| 2 | 7624-B-7 | LINK ASSY COMPLETE |
| 3 | 7624-A-18 | LINK ASSY BODY |
| 4 | 7324-A-19 | END LINK (PIVOT BLOCK) BODY |
| 5 | END LINK (PIVOT BLOCK) COMPLETE | |
| 6 | 7624-A-20 | END LINK (SCREW) BODY |
| 7 | END LINK (SCREW) COMPLETE | |
| 8 | END LINK (SCREW) BODY W/ CHAIN | |
| 9 | 7624-A-21 | INSERT |
| 10 | 7624-B-21 | SPRING F/ INSERT |
| 11 | 900620-52 | COTTER F/ INSERT |
| 12 | 7624-A-22 | HANDLE |
| 13 | 7624-A-5 | SCREW |
| 14 | 7624-B-5 | NUT |
| 15 | 7624-A-5000 | PIVOT BLOCK |
| 16 | 7624-D-5 | PIVOT BLOCK PIN |
| 17 | 7624-F-5 | END LINK PIN W/ CHAIN |
| 18 | 7624-C-5 | LINK PIN |
| – | 900620-36 | COTTER PIN F/ LINK PIN |
| 19 | 7624-G-5 | LINK PIN FOR OLD STYLE HANDLE |
| 20 | 900533-12 | ALLEN WRENCH F/ PIVOT BLOCK PIN |
| 21 | 7624-A-25 | NUT WRENCH |
Type C Safety Clamps
The Type C Safety Clamp is designed for oilfield operations to help prevent drill collars, flush-joint pipe, and other tubulars from accidentally falling into the wellbore. Its hinged construction incorporates interchangeable links and spring-loaded tapered slips that provide secure, even gripping around the pipe when tightened.
This safety clamp can also serve as a temporary lifting shoulder for tubulars that do not have an integral shoulder, making it suitable for handling twisted-off fishing tools, prepacked gravel liners, and similar downhole equipment. Built for reliable performance in demanding field conditions, it offers a practical solution for both safety and lifting applications.

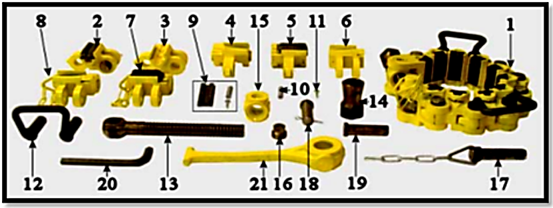

| ITEM | PN# | DESCRIPTION |
| 2 | 7624-A-7 | LINK ASSY COMPLETE |
| 3 | 7624-A-1 | LINK ASSY BODY |
| 4 | 7624-A-24 | END LINK (PIVOT BLOCK) BODY |
| 5 | END LINK (PIVOT BLOCK) COMPLETE | |
| 6 | 7624-A-3 | END LINK (SCREW) BODY |
| 7 | END LINK (SCREW) COMPLETE | |
| 8 | END LINK (SCREW) BODY W/ CHAIN | |
| 9 | 7624-A-4 | INSERT |
| 10 | 7624-E-5 | SPRING F/ INSERT |
| 11 | 900620-65 | COTTER F/ INSERT |
| 12 | 7624-A-6 | HANDLE |
| 13 | 7624-A-5 | SCREW |
| 14 | 7624-B-5 | NUT |
| 15 | 7624-A-5000 | PIVOT BLOCK |
| 16 | 7624-D-5 | PIVOT BLOCK PIN |
| 17 | 7624-F-5 | END LINK PIN W/ CHAIN |
| 18 | 76924-C-5 | LINK PIN |
| – | 900620-36 | COTTER PIN F/ LINK PIN |
| 19 | 7624-G-5 | LINK PIN FOR OLD STYLE HANDLE |
| 20 | 900533-12 | ALLEN WRENCH F/ PIVOT BLOCK PIN |
| 21 | 7624-A-25 | NUT WRENCH |
| – | 7624-A-29 | LIFTING CLEVIS ONLY |
| – | 7624-29 | LIFTING CLEVIS COMPLETE |
| ITEM | PN# | DESCRIPTION |
| – | 7624-5055 | (7 LINK) 3 3/4″- 4 5/8″ |
| – | 7624-5056 | (8 LINK) 4 1/2″- 5 5/8″ |
| – | 7624-5057 | (9 LINK) 5 1/2″- 6 5/8″ |
| 1 | 7624-5058 | (10 LINK) 6 1/2″- 7 5/8″ |
| – | 7624-5059 | (11 LINK) 7 1/2″- 8 5/8″ |
| – | 7624-5060 | (12 LINK) 8 1/2″- 9 5/8″ |
| – | 7624-5061 | (13 LINK) 9 1/2″- 10 5/8″ |
| – | 7624-5062 | (14 LINK) 10 1/2″-11 5/8″ |
| – | 7624-5063 | (15 LINK) 11 1/2″-12 5/8″ |
| – | 7624-5064 | (16 LINK) 12 1/2″-13 5/8″ |
| – | 7624-5065 | (17 LINK) 13 1/2″-14 5/8″ |
| – | 7624-5066 | (18 LINK) 14 1/2″-15 5/8″ |
Safety Clamp Link Assemblies
The link assembly forms the primary gripping structure of the safety clamp and is designed for durability and reliable performance in demanding field environments.
Available components include:
- Link Assembly Complete
- Link Assembly Body
- Link Pins
- Link Pin Chains
- Link Pin Cotters
- Old Style Handle Link Pins
These components help maintain clamp integrity and ensure secure gripping performance during operation.
Safety Clamp Inserts & Gripping Components
Safety clamp inserts are critical for achieving proper pipe engagement and maintaining secure holding capability.
Available components include:
- Safety Clamp Inserts
- Insert Springs
- Insert Cotters
- Replacement Gripping Components
These parts help maintain effective gripping performance while supporting safe tubular handling procedures.
Pivot Blocks, Handles & Operating Components
Both Type C and Type T safety clamps incorporate durable operating components designed for field use.
Available replacement parts include:
- Pivot Blocks
- Pivot Block Pins
- Handles
- End Link Bodies
- End Link Assemblies
- End Link Pins with Chains
- Screws
- Nuts
These components support safe operation and simplify equipment maintenance requirements.
Lifting Clevises & Maintenance Components
Type C safety clamps also feature lifting clevis options for handling and operational convenience.
Available components include:
- Lifting Clevis Only
- Complete Lifting Clevis Assemblies
- Allen Wrenches
- Nut Wrenches
- Service Hardware
These components support installation, maintenance, and routine servicing activities.
Applications
Type C and Type T safety clamps are commonly used in:
- Drilling operations
- Workover projects
- Well servicing operations
- Tubing handling
- Casing handling
- Drill pipe handling
- Oilfield maintenance programs
These safety clamps provide dependable pipe support while helping improve operational safety and efficiency.
Why Choose LKC Equipment
LKC Equipment supplies quality oilfield handling tools and replacement components designed for demanding drilling environments.
Benefits include:
- Type C safety clamps
- Type T safety clamps
- Multiple pipe size ranges
- Link assembly components
- Safety clamp inserts
- Lifting clevis assemblies
- Replacement parts available
- Industry-proven equipment
Frequently Asked Questions
Safety clamps are used to grip and support tubulars during drilling, workover, and well servicing operations, helping prevent pipe movement and improve operational safety.
Type T safety clamps are typically used for smaller pipe diameters, while Type C safety clamps accommodate larger casing and tubular sizes through additional link configurations.
Type T safety clamps are available for pipe sizes ranging from 1 1/8″ to 4 1/2″ depending on the selected link configuration.
Type C safety clamps are available for pipe sizes ranging from 3 3/4″ to 15 5/8″ depending on the selected link configuration.
Yes. Replacement inserts, insert springs, cotters, link assemblies, handles, pivot blocks, and other maintenance components are available.
Yes. Lifting clevises and complete lifting clevis assemblies are available for Type C safety clamp configurations.
